APPLICATION
Cov kab no feem ntau xaiv rau:
- Kev tshaj lij 15-taug suab, tshaj tawm thiab loj- teev nyob theem AV tshuab rau siab-kev ncaj ncees qis-crosstalk sib npaug suab sib kis
- Muaj automation, PLC/DCS siab- ntom ntau- voj txheej txheem tswj tshuab rau 15-channel analog & digital tswj teeb liab kis tau tus mob
- Precision instrumentation, 15-channel xeem & ntsuas thiab cov ntaub ntawv tau txais cov tshuab rau qis-attenuation tsis muaj zog teeb liab kis tau tus mob
- Lub tsev txawj ntse, loj - nplai kev ruaj ntseg thiab hluav taws kub tswb txuas tshuab rau ntau-channel ntev- kev tswj qhov deb
- Kev sib txuas lus hauv paus chaw nres tsheb txhawb nqa tshuab, cov cuab yeej siv hauv kev xaim hluav taws xob thiab cov txee kev sib txuas hauv siab EMI ib puag ncig
Kev tsim kho
|
Cov khoom siv coj ua |
Tinned tooj |
|
Tus neeg xyuas pib nto / qauv |
7/28 AWG |
|
Core Insulation Khoom |
PP |
|
Screen1 Khoom |
Bi-Laminate (Alum + Poly) |
|
Nthuav Khoom |
Tinned tooj |
|
Screen2 Khoom |
N/A |
|
Khoom Txheej Txheej |
PVC |
CHARACTERISTIS
|
Kab kev ua haujlwm (ntawm 20 degree) |
Cov ntaub ntawv ntawm khoom |
|
Inner Conductor DC Resistance |
Tsawg dua lossis sib npaug li 34.4Ω / km |
SPECIFIATION rau kev pom zoo
|
Impedance |
100±10Ω |
|
Capacitance conductor rau conductor |
Nom.98pF/m |
|
Capacitance conductor rau shielded |
No.180pF/m |
|
Max ua haujlwm voltage |
300V |
|
Ua haujlwm kub |
-20℃rau +80 degree |
|
Cov kev cai dav dav |
Raws li RoHS |
Kev ntim khoom tsis tu ncua
100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil / Nruas
Kev tsim qauv tsim & teeb pom kev zoo

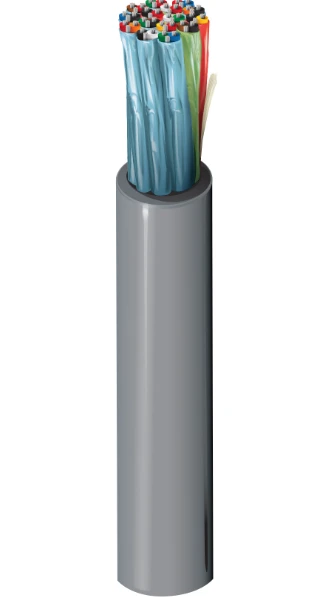

- 15 twisted khub nrog 100% kev tiv thaiv tus kheej
- Dedicated 22 AWG tinned tooj liab xaim rau txhua khub
- Tsawg-capacitance PP rwb thaiv tsev kom ntseeg tau siab -kev ncaj ncees qis-distortion teeb liab xa
- Integrated tsim zoo heev simplifies thaiv
- Lub tsho PVC ruaj khov muab kev tiv thaiv kev ruaj ntseg rau kev ua haujlwm ntev - lub sijhawm ruaj khov.
